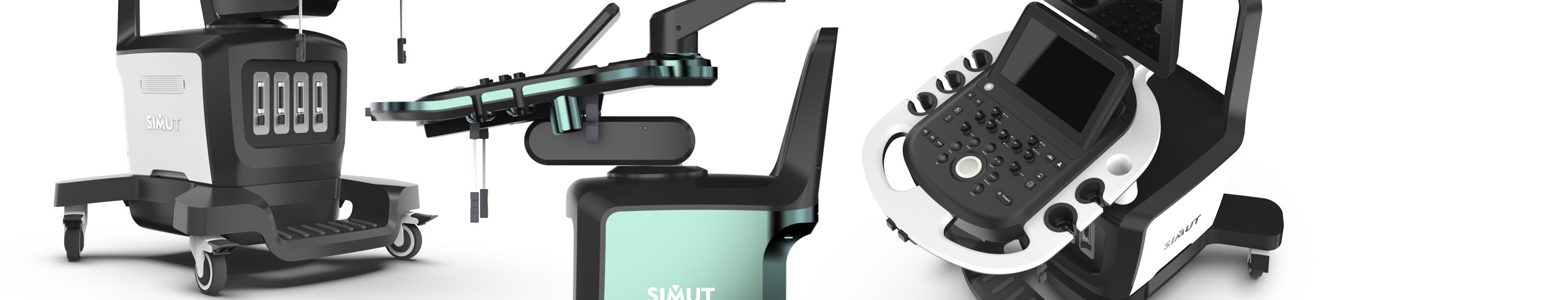

Ultrasound Device Design

The design of the ultrasound device has been developed to address the needs of professional users and physicians in the most effective way. With a strong focus on performance, ergonomics, and visual design, the device delivers a highly professional and efficient user experience. One of its key features is the adjustable movement system of the control panel and monitor, allowing both height and angle to be adapted to the physician’s posture and comfort. The control panel mechanism enables users to adjust it according to their working position, while the monitor arm offers flexible tilt and height adjustment, significantly enhancing usability in different clinical conditions.

Another notable innovation is the lockable monitor arm mechanism, which allows the screen to be folded during transportation, reducing packaging volume and improving portability. This feature not only simplifies transportation but also provides better protection for sensitive components during handling. In addition, ergonomic handles have been designed to ensure easy and comfortable movement of the device. The internal architecture is also optimized for assembly, maintenance, and repair, allowing technicians to access and replace components with ease, ultimately increasing the device’s lifespan and service efficiency.

The visual identity of the device is designed to be cohesive and professional, combining precise proportions and balanced color usage to create a sense of trust and technological reliability. Attention to detail is evident throughout the design—for instance, probe holders are made with removable, washable silicone layers that protect the probes from damage while ensuring hygiene. Cable management elements are also designed in flexible silicone to prevent tangling and improve organization during use.

Every component of the device is carefully shaped according to ergonomic principles. From the tilt of the control panel and monitor viewing angles to the size of buttons and placement of handles, all elements are optimized to reduce user fatigue during long-term use. Handle positions for both the control panel and the main body are strategically placed to minimize physical strain during movement and operation.

Overall, this ultrasound device combines high performance, functional design, and refined aesthetics to deliver a professional medical imaging solution. Through advanced ergonomics, intelligent mobility systems, and carefully considered detailing, the product successfully meets the expectations of clinical users and provides a smooth, efficient, and comfortable experience.

In addition, EKAS Design Studio, led by one of Asia’s most experienced and professional teams in the field of medical equipment design, has a valuable and proven track record in developing ultrasound systems, contributing significant expertise and insight to this domain.
